		DEEP/MPI -- Program Analysis Options

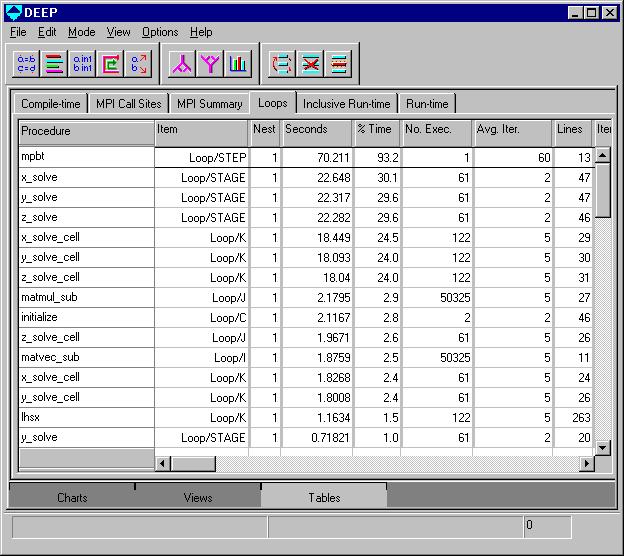

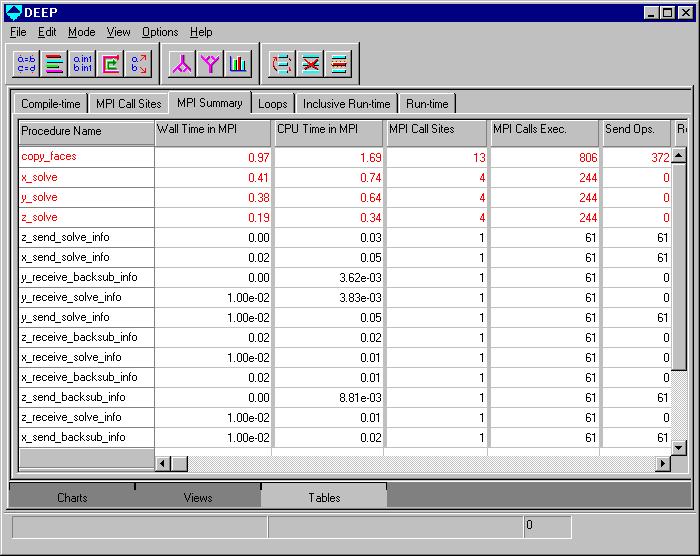

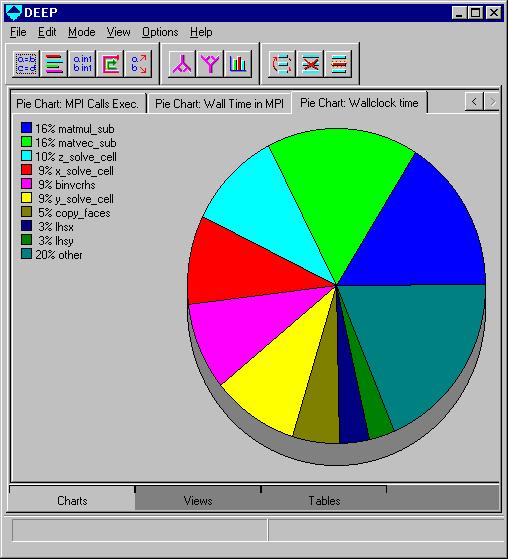

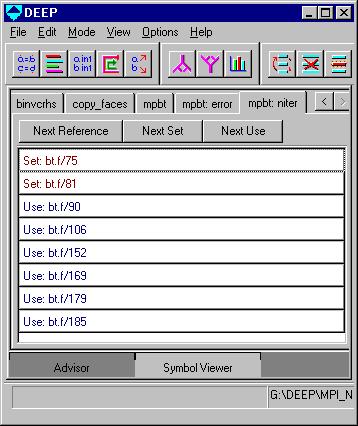

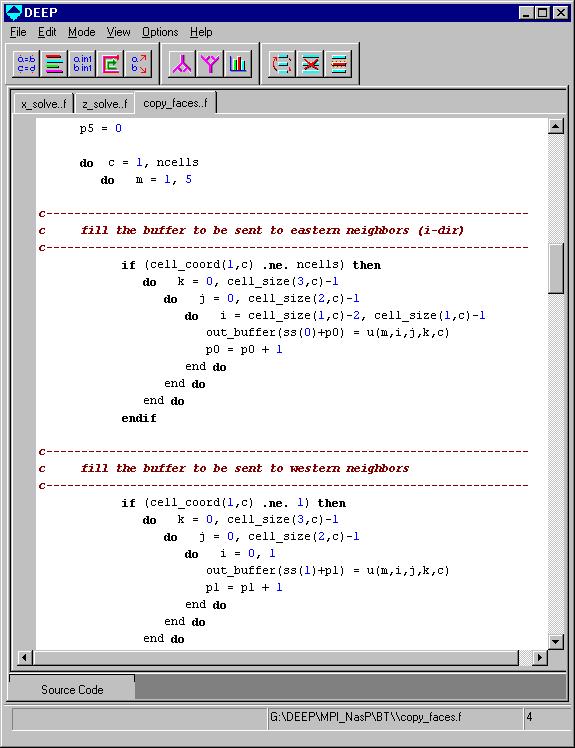

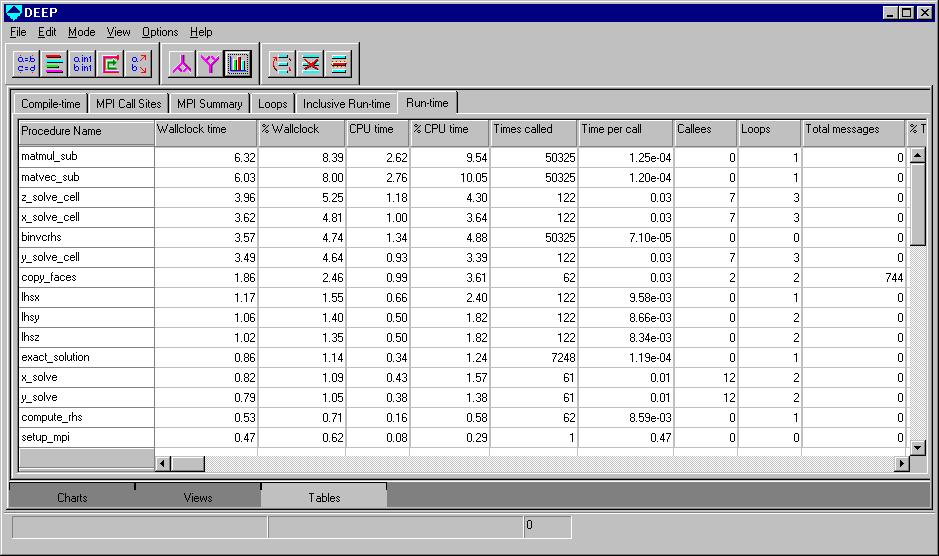

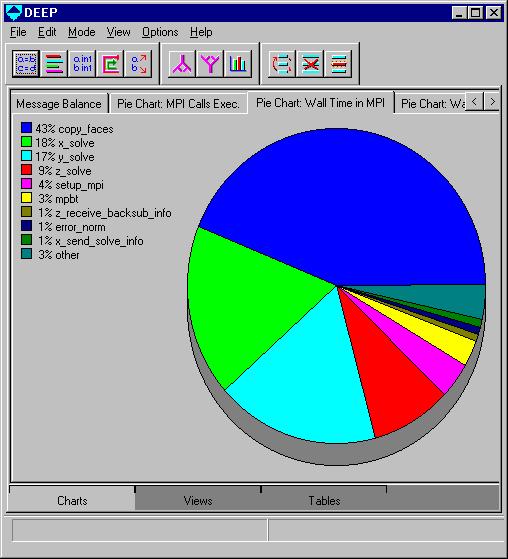

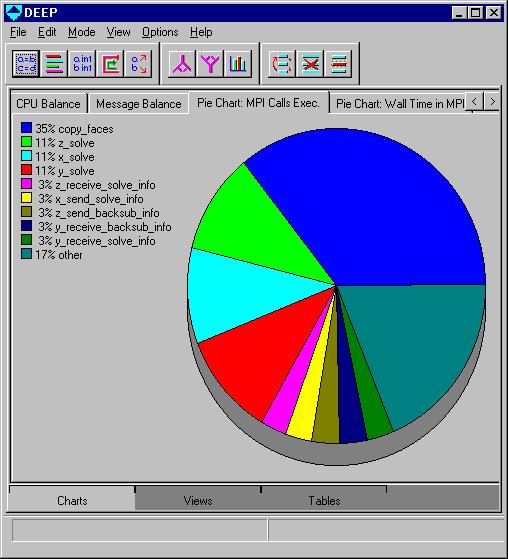

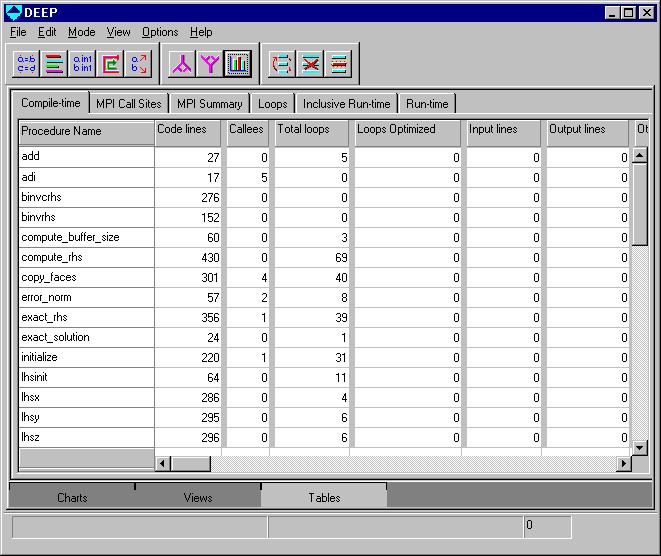

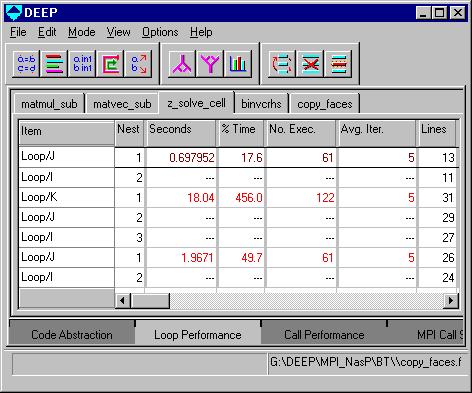

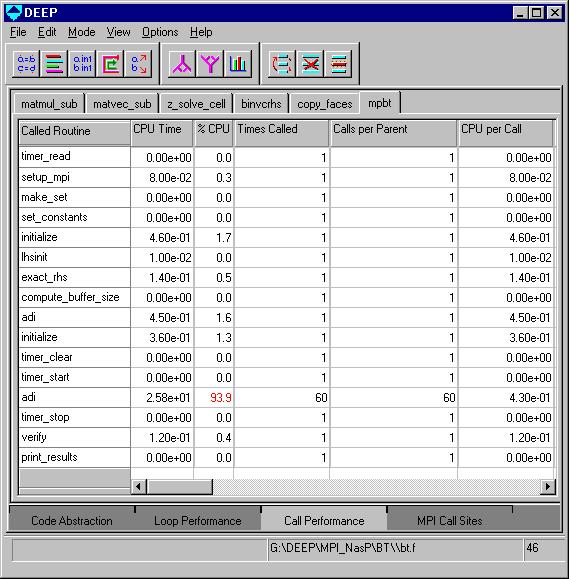

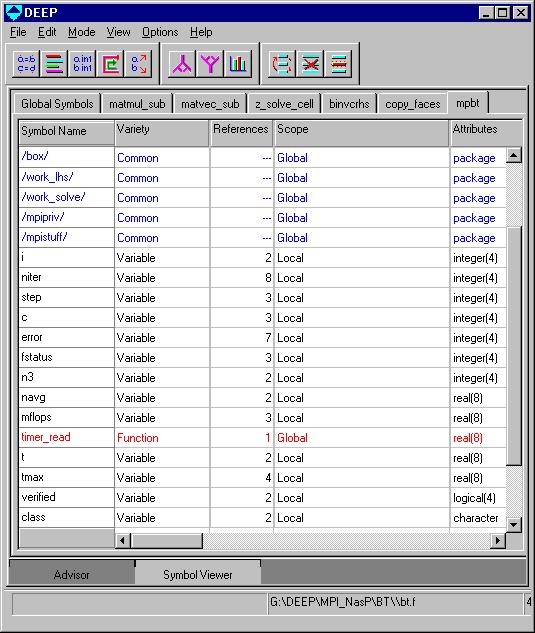

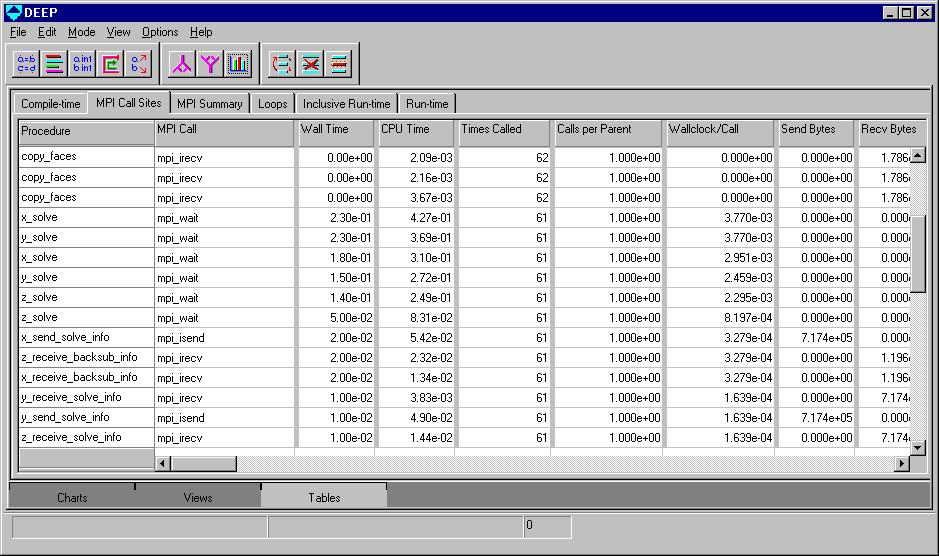

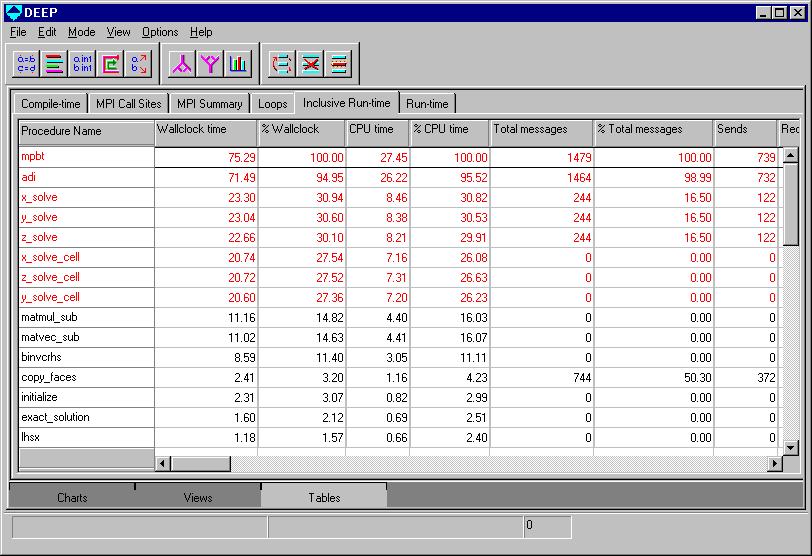

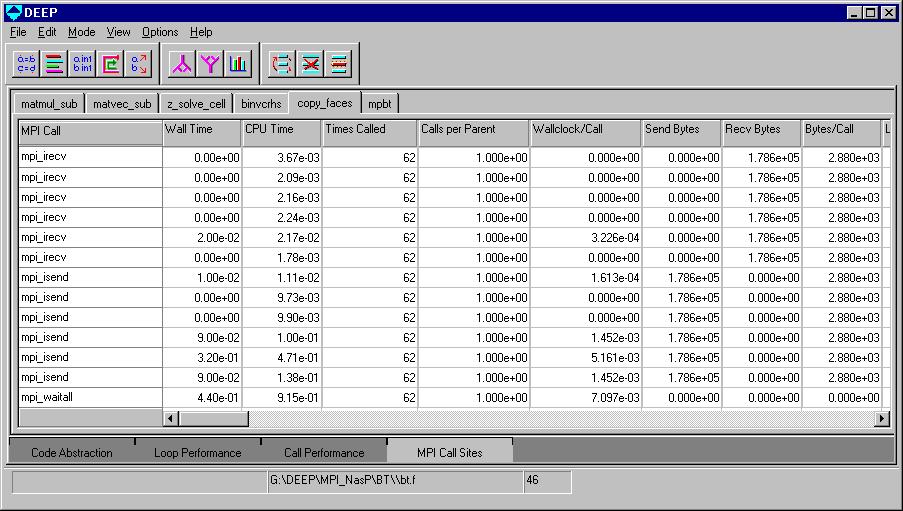

		Program Analysis Information DEEP/MPI has a rich selection of information displays to help you in understanding your MPI program. Normally, DEEP is used with a framework that shows multiple views at the same time, as in these screen snapshots: Screen Snapshot 1. Screen Snapshot 2. Screen Snapshot 3. In the examples below, a portion of the DEEP display has been isolated for easier web browser viewing. Click on any highlighted item below to see an (isolated) example of that display. Charts Total Messages CPU Balance Message Balance MPI Calls MPI Wallclock Time Wallclock Time Custom Chart Views Calling Tree Whole Program -- Loop Time Advisor Tables Clicking on a row of any program-level table brings information about the selected procedure or loop into the other panels (source browser, etc.) These tables are somewhat self-explanatory based on the column headings. More information can be found in the DEEP User's Guide. Please click on a table below to see a picture of that table. Compile-time MPI Call Sites MPI Summary Loops Inclusive Run-time Run-time Global Symbols Procedure-Level Displays Clicking on a row in any table selects that row and brings the relevant information into other DEEP panels. For example, clicking on a reference in a symbol reference display brings that file and line into the source code browser for you to examine. These tables are somewhat self-explanatory based on the column headings. Please click on a table below to see a picture of that table. Source Code Browser. (Supports both Fortran and C.) Code Abstract Loop Table Call Table MPI Call Sites Symbol Table Symbol Reference
