		DEEP/MPI Call tree display

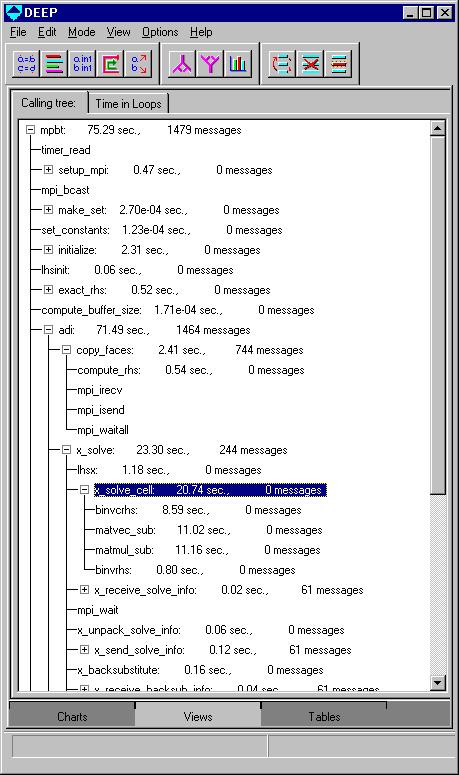

		The call tree display seen below allows you to examine the structure of the program as a tree. The tree branches can be expanded by clicking on the "+" signs, and contracted by clicking on the "-" signs. Each procedure in the program is annotated with the number of messages and wall clock time spent in the that procedure and all procedures called below that procedure (inclusive time and messages). If you click on a procedure in the call tree display, you select it, and you can then use the procedure buttons to get the source code, symbol table, and other information about the procedure.

Call tree display
